BP365-10nm 365 nm Bandpass Filter
BP365-10nm bandpass filter with a 365 nm center wavelength and 10 nm bandwidth. Mount style, dimensions, and OD depend on the selected configuration.

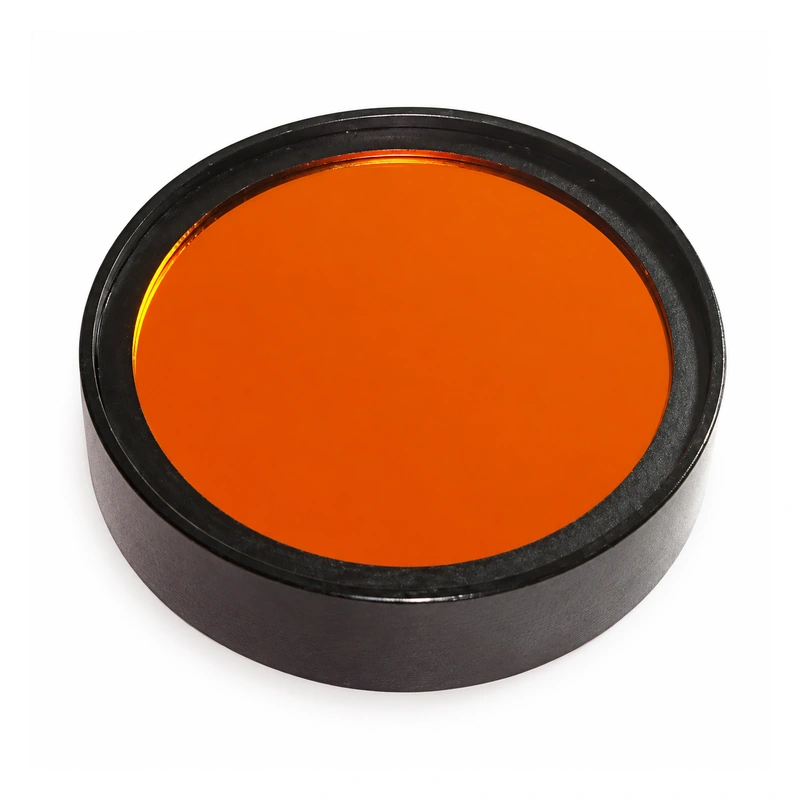

The photo shows a mounted configuration. The unmounted option has a different thickness and no ring.
Specifications
| Model | BP365-10nm |
|---|---|
| Center wavelength | 365 nm |
| Bandwidth | 10 nm |
| Cutoff range | 200-700 nm |
| Transmission in the source specifications | Greater than 90% |
| Option transmission label | T90% |
Available Configurations
Select a configuration to see its price and SKU. Dimensions and mount style are specified for each option.
| SKU | Configuration | Price (USD) |
|---|---|---|
| S144 | Unmounted, D12.5 x 1 mm, OD3, T90% | $131.25 |
| S145 | Mounted, D25.4 x 6 mm, OD5, T90% | $225.00 |

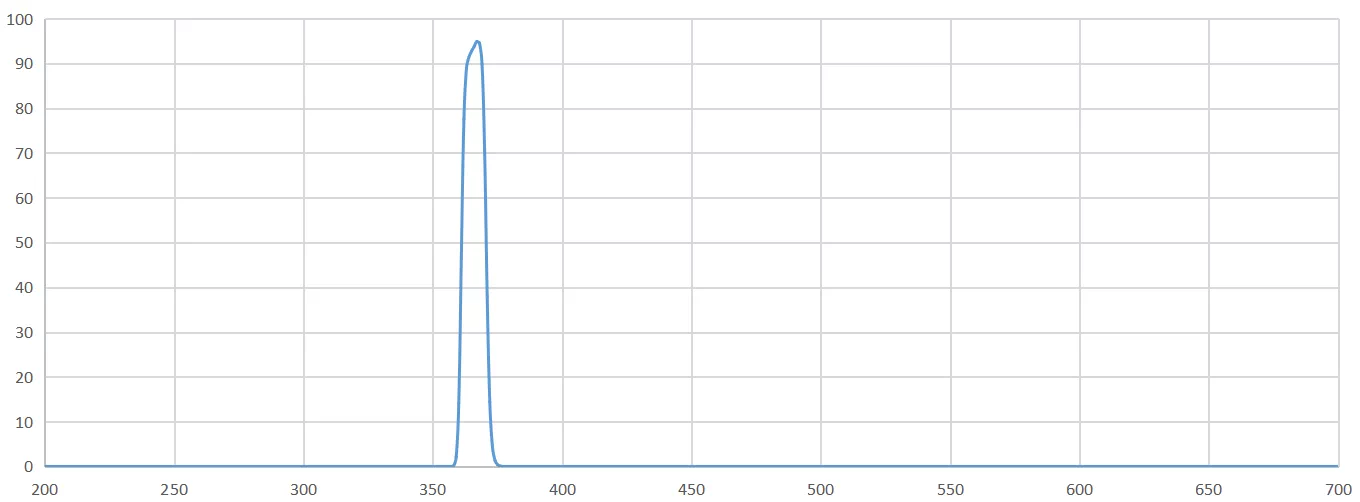

Transmission Spectrum
The horizontal axis shows wavelength in nm; the vertical axis shows transmission in percent.
Source transmission reference for BP365-10nm. The OD and mounting dimensions depend on the selected configuration.
