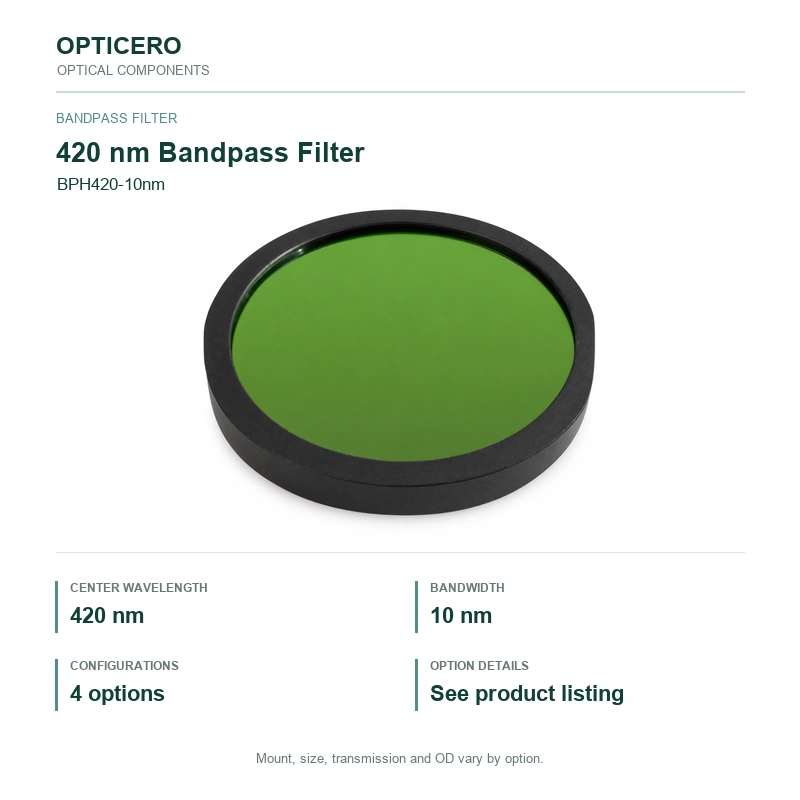

BPH420-10nm 420 nm Bandpass Filter
BPH420-10nm bandpass filter with a 420 nm center wavelength and 10 nm bandwidth. Mount style, dimensions, transmission, and OD vary by configuration.

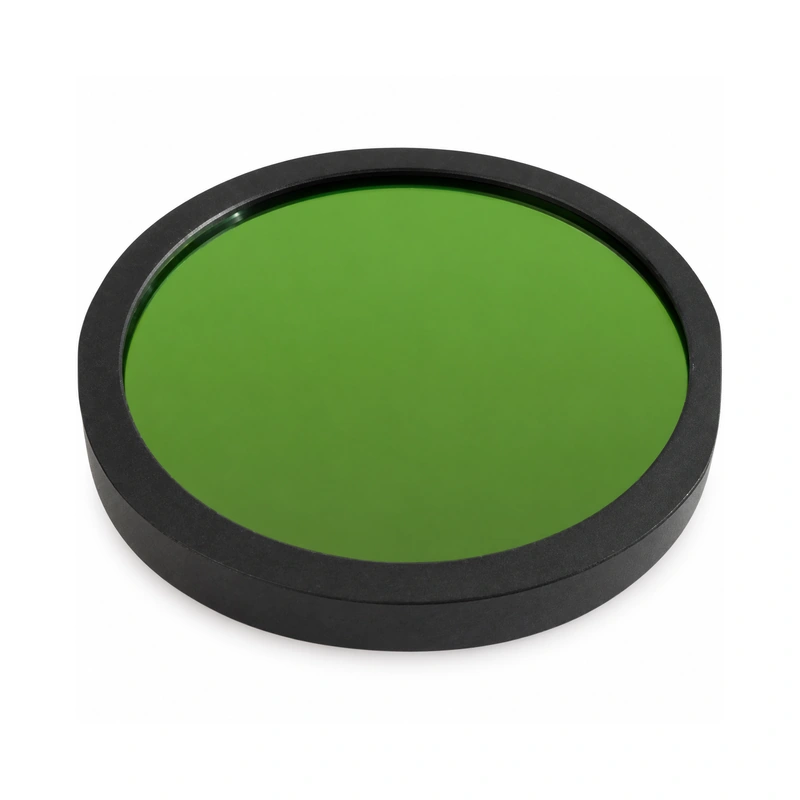

The photo shows a mounted configuration. Dimensions, mount, transmission, and OD depend on the selected option.
Specifications
| Model | BPH420-10nm |
|---|---|
| Center wavelength | 420 nm |
| Bandwidth | 10 nm |
Available Configurations
Select a configuration to see its price and SKU. Dimensions and mount style are specified for each option.
| SKU | Configuration | Price (USD) |
|---|---|---|
| S146 | Mounted, D25.4 x 6 mm, T85%, OD5 | $225.00 |
| S147 | Unmounted, D25.4 x 3 mm, T85%, OD5 | $225.00 |
| S148 | Mounted, D12.7 x 6 mm, T90%, OD5 | $178.13 |
| S149 | Mounted, D8 x 6 mm, T70%, OD4 | $131.25 |

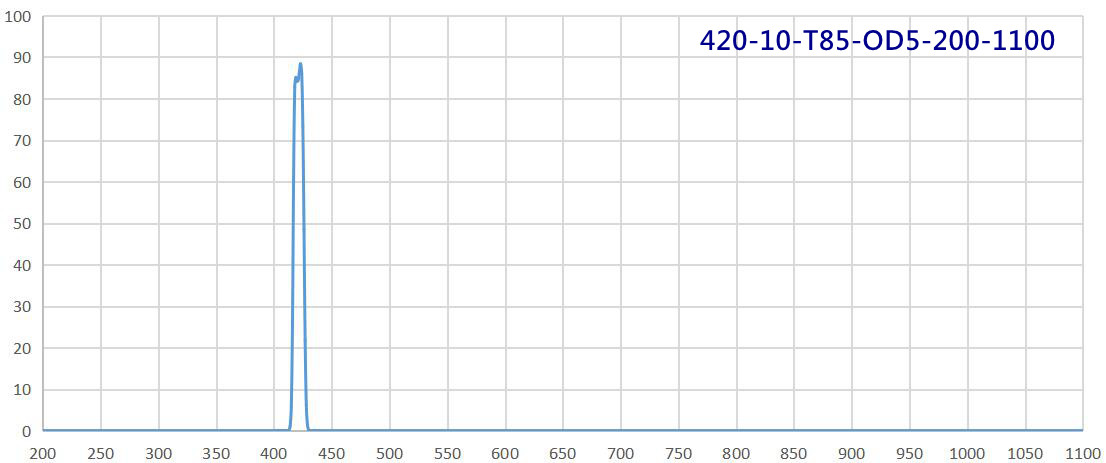

Transmission Spectrum
The horizontal axis shows wavelength in nm; the vertical axis shows transmission in percent.
The source curve is labeled 420-10-T85-OD5-200-1100 and applies to the T85%, OD5 configurations (S146 and S147). It does not specify the performance of S148 or S149.
