BPH495-10nm 495 nm Bandpass Filter
BPH495-10nm is a 495 nm bandpass filter with a 10 nm bandwidth, listed T90% transmission, and OD5. Mount style, diameter, and thickness depend on the selected option.

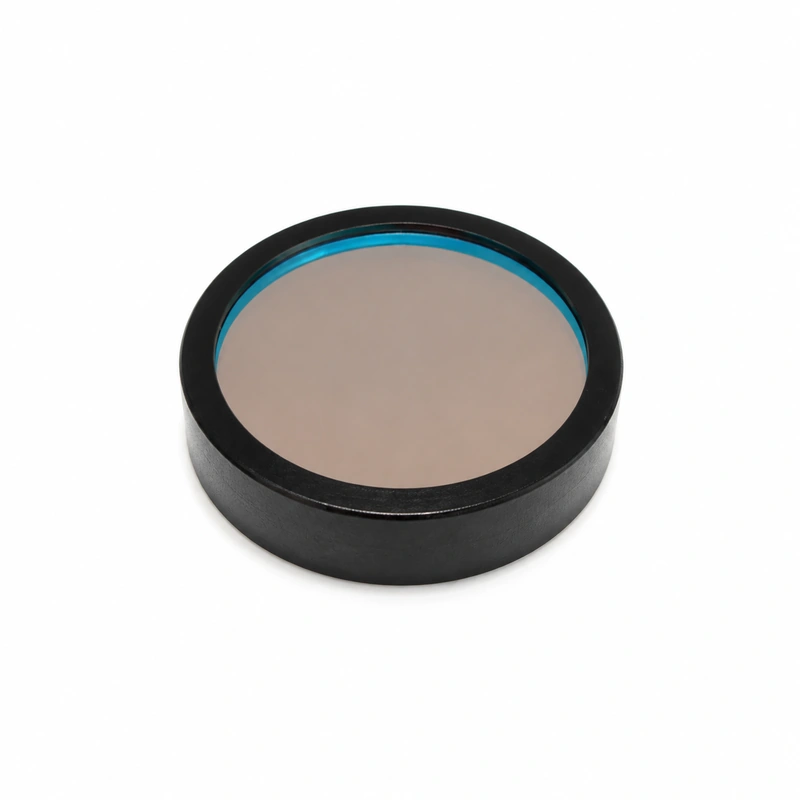

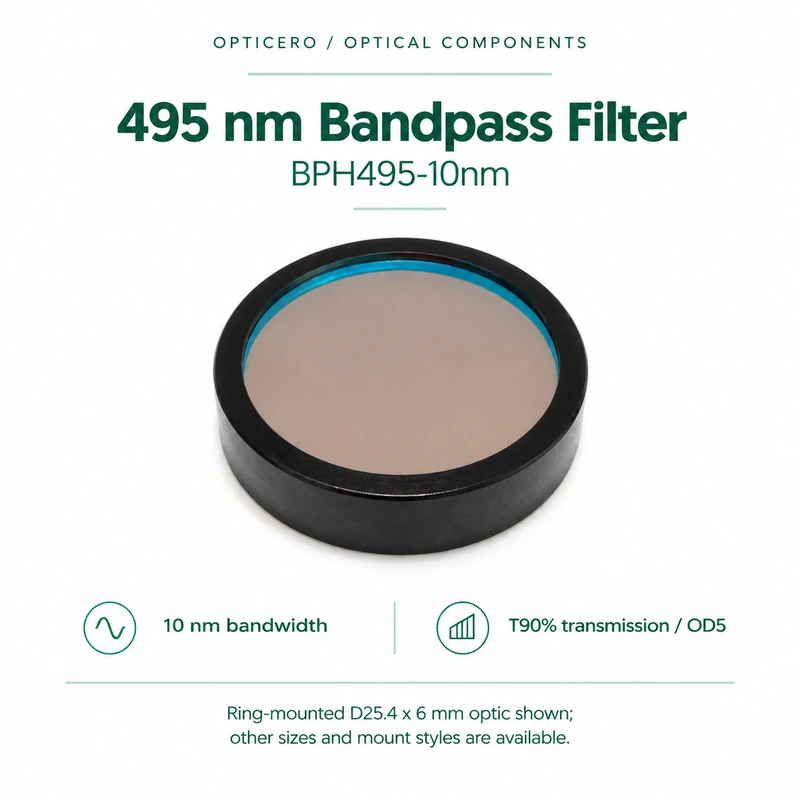

The reference shows the ring-mounted D25.4 x 6 mm configuration. Unmounted options are also offered, and diameter and thickness vary by option.
Specifications
| Model | BPH495-10nm |
|---|---|
| Center wavelength | 495 nm |
| Bandwidth | 10 nm |
| Listed transmission | T90% |
| Optical density | OD5 |
Available Configurations
Select a configuration to see its price and SKU. Dimensions, mount style, transmission, and optical density are specified for each option.
| SKU | Configuration | Price (USD) |
|---|---|---|
| S150 | Ring-mounted; D25.4 x 6 mm; OD5; T90% | $225.00 |
| S151 | Unmounted; D25.4 x 3 mm; OD5; T90% | $225.00 |
| S152 | Ring-mounted; D12.7 x 6 mm; OD5; T90% | $178.13 |
| S153 | Unmounted; D12.7 x 3 mm; OD5; T90% | $178.13 |

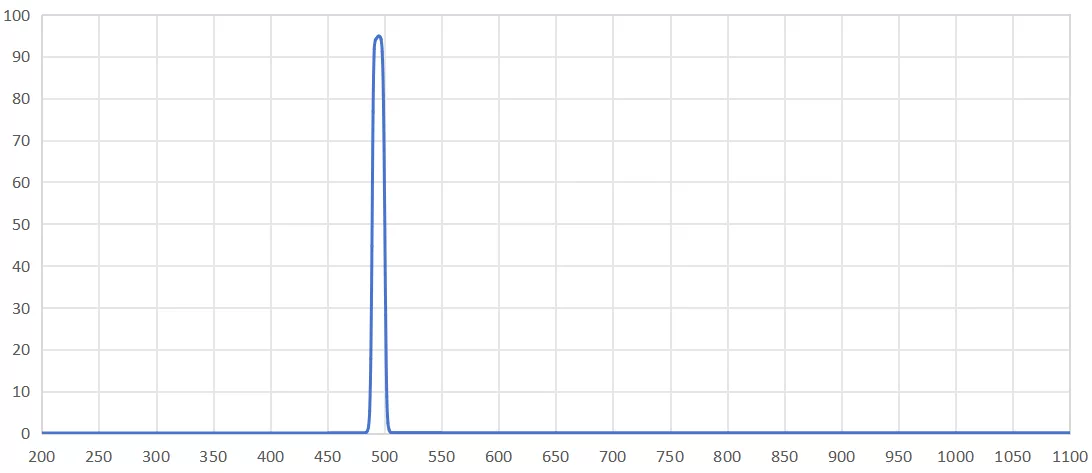

Transmission Spectrum
The horizontal axis shows wavelength in nm; the vertical axis shows transmission in percent.
The source graph shows a narrow transmission peak near 495 nm across a displayed 200-1100 nm axis. The curve is for reference; no additional tolerance values are inferred.
