NB-1485-30nm 1485 nm Bandpass Filter
NB-1485-30nm is a compact 1485 nm infrared bandpass filter with a 30 nm bandwidth, OD3, a listed 200-2200 nm cutoff range, and transmission above 65%. All listed options are unmounted and have no metal retaining ring.

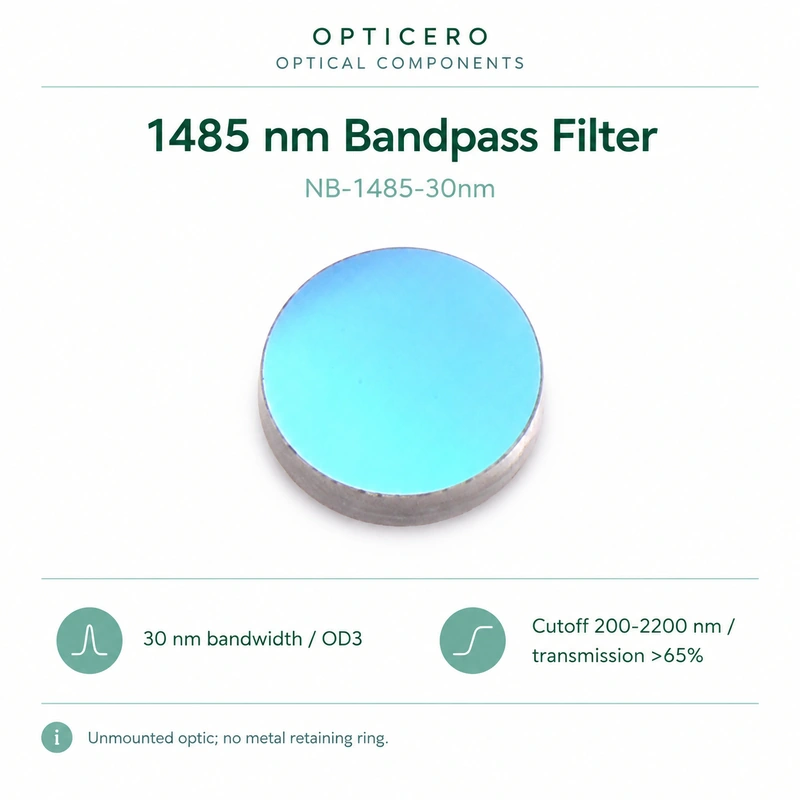

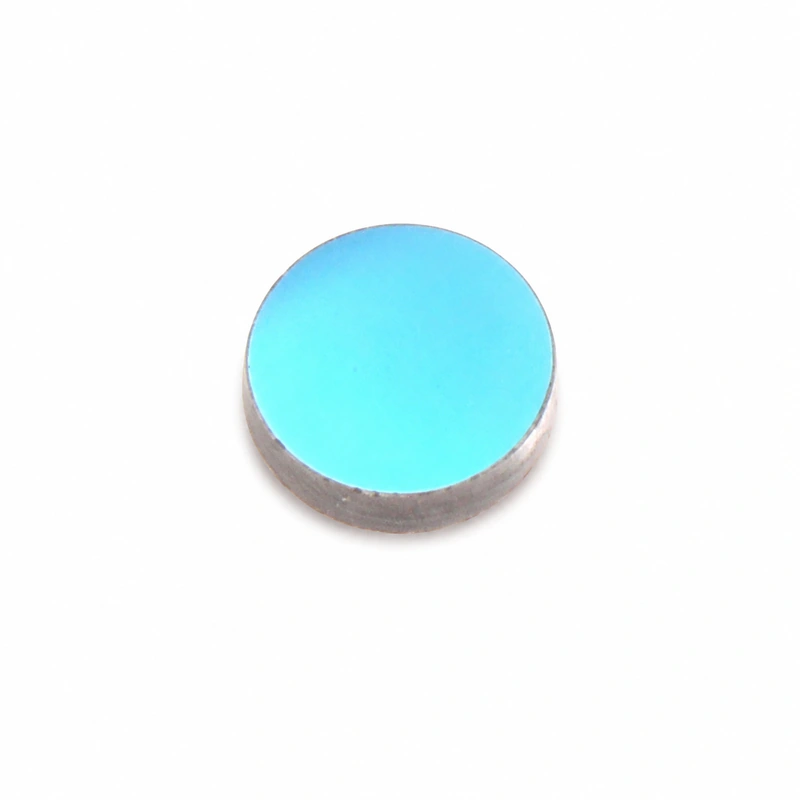

The reference shows a small unmounted coated optic. The source states that the options have no metal protective ring.
Specifications
| Model | NB-1485-30nm |
|---|---|
| Center wavelength | 1485 nm |
| Bandwidth | 30 nm |
| Optical density | OD3 |
| Listed cutoff range | 200-2200 nm |
| Listed transmission | >65% |
| Mount | Unmounted; no metal retaining ring |
Available Configurations
Select a configuration to see its price and SKU. Dimensions, mount style, transmission, and optical density are specified for each option.
| SKU | Configuration | Price (USD) |
|---|---|---|
| S154 | D4 x 1 mm; unmounted | $112.50 |
| S155 | D5 x 1 mm; unmounted | $140.63 |
| S156 | D5.5 x 1 mm; unmounted | $164.06 |
Reviews
There are no reviews yet.
