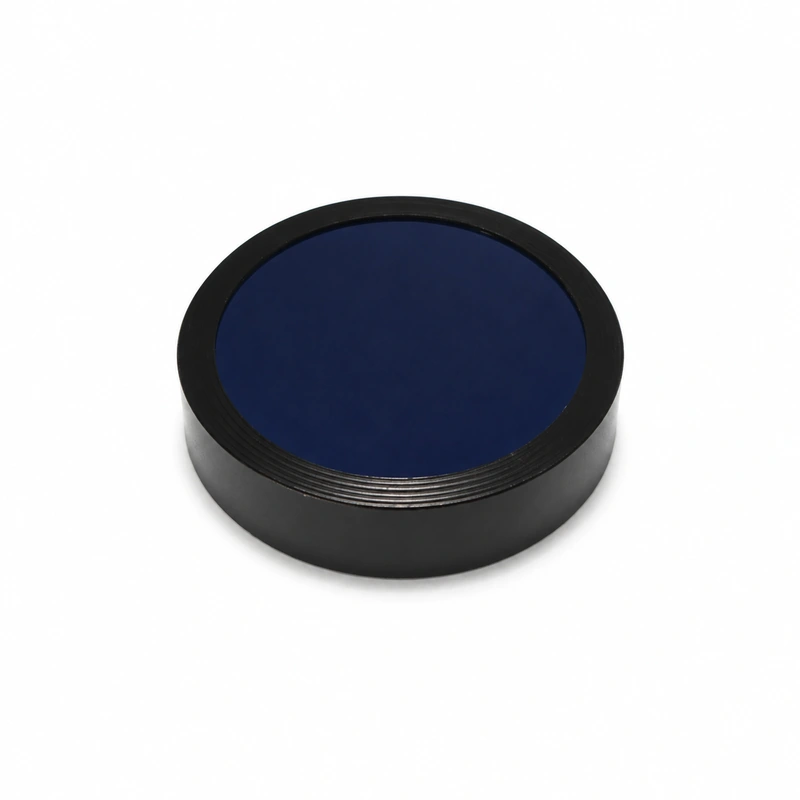

BP370-10nm 370 nm Bandpass Filter
BP370-10nm is a 370 nm bandpass filter with a 10 nm bandwidth. Peak transmission and optical density depend on the selected configuration.
The reference shows the ring-mounted D25.4 x 6 mm configuration. The smaller ring-mounted option has a different transmission and OD rating.
Specifications
| Model | BP370-10nm |
|---|---|
| Center wavelength | 370 nm |
| Bandwidth | 10 nm |
| Transmission and optical density | Depend on selected configuration |
Available Configurations
Select a configuration to see its price and SKU. Dimensions, mount style, transmission, and optical density are specified for each option.
| SKU | Configuration | Price (USD) |
|---|---|---|
| S157 | Ring-mounted; D25.4 x 6 mm; T70%; OD5 | $225.00 |
| S158 | Ring-mounted; D12.7 x 3.5 mm; T85%; OD4 | $178.13 |

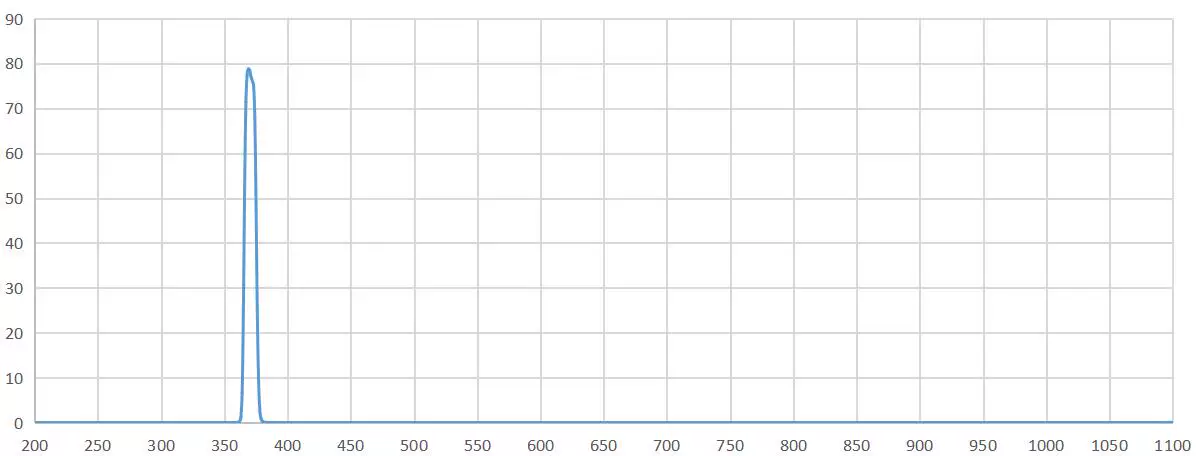

Transmission Spectrum
The horizontal axis shows wavelength in nm; the vertical axis shows transmission in percent.
The source transmission curve is included for reference. The listed transmission and OD values are configuration-specific.
