BPH560-10nm 560 nm Bandpass Filter
BPH560-10nm is a 560 nm bandpass filter with a 10 nm bandwidth, T90% transmission, and OD5. Mounted and unmounted options are available.

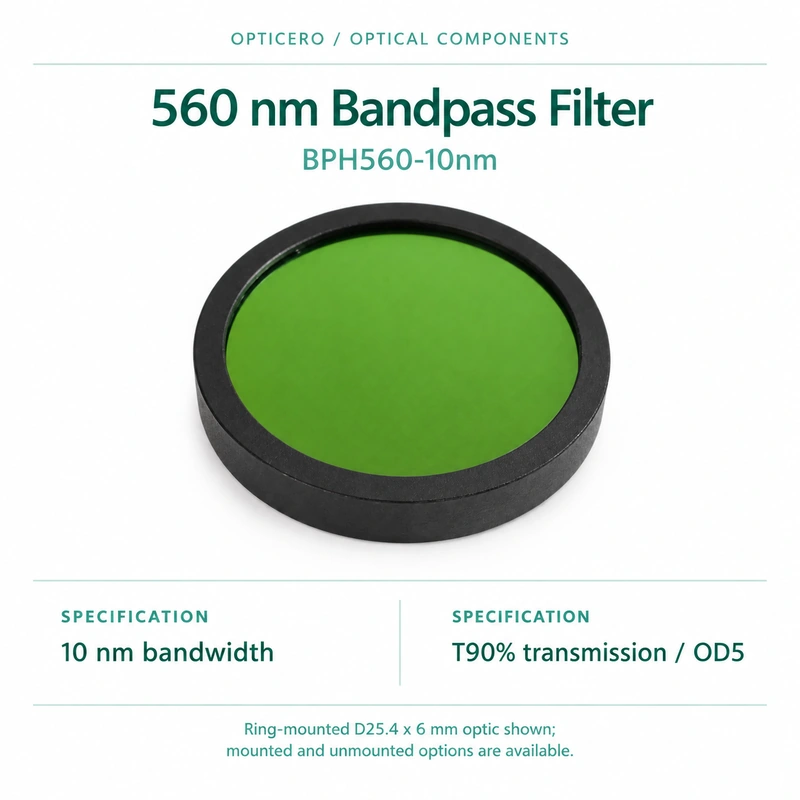

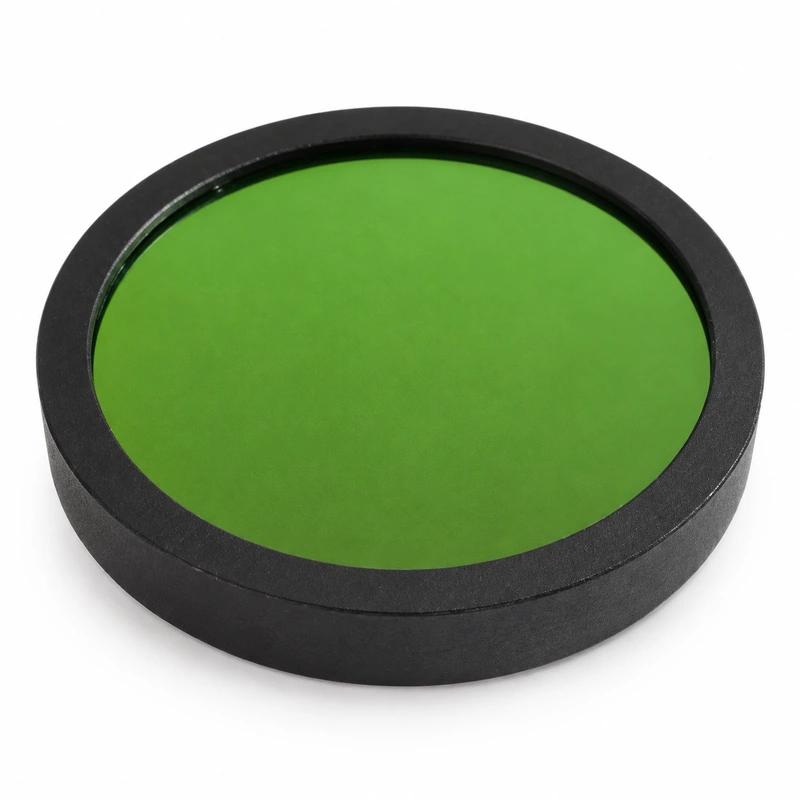

The reference shows the ring-mounted D25.4 x 6 mm configuration. A thinner unmounted D25.4 x 3 mm option and a smaller ring-mounted option are also offered.
Specifications
| Model | BPH560-10nm |
|---|---|
| Center wavelength | 560 nm |
| Bandwidth | 10 nm |
| Listed transmission | T90% |
| Optical density | OD5 |
Available Configurations
Select a configuration to see its price and SKU. Dimensions, mount style, transmission, and optical density are specified for each option.
| SKU | Configuration | Price (USD) |
|---|---|---|
| S159 | Ring-mounted; D25.4 x 6 mm; T90%; OD5 | $225.00 |
| S160 | Unmounted; D25.4 x 3 mm; T90%; OD5 | $225.00 |
| S161 | Ring-mounted; D12.7 x 6 mm; T90%; OD5 | $178.13 |

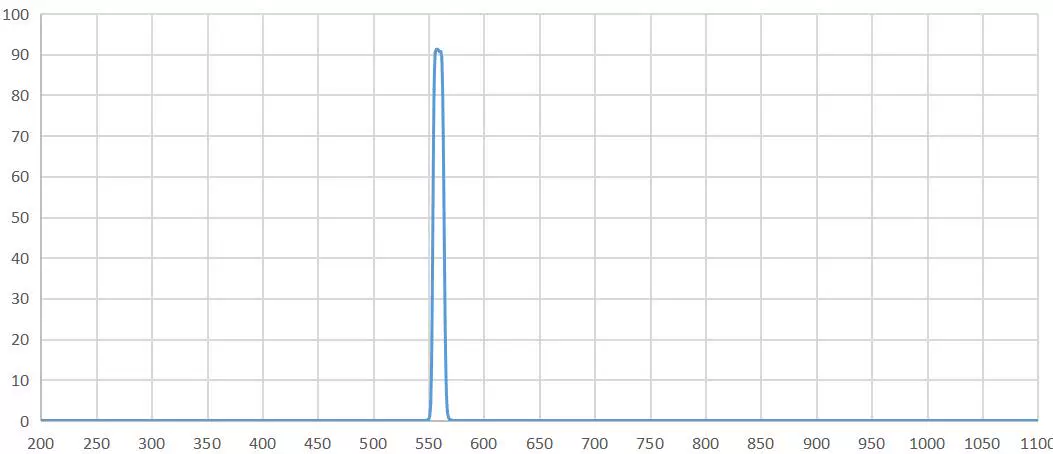

Transmission Spectrum
The horizontal axis shows wavelength in nm; the vertical axis shows transmission in percent.
The source transmission curve is included for reference. The three listed configurations share the same T90% and OD5 ratings.
