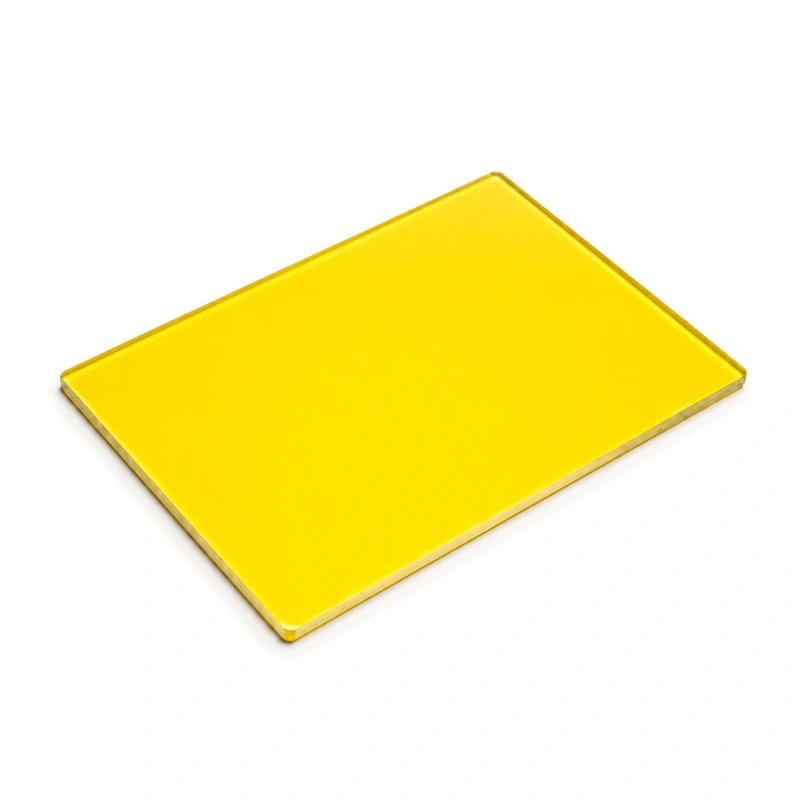

FLU-TL800LM 785 nm Raman Dichroic Filter on a white background
FLU-TL800LM 785 nm Raman Dichroic Filter shown with verified English specifications on a white background

P17 – FLU-TL800LM 785 nm Raman Dichroic Filter

$459.38

& Free Shipping

785 nm dichroic filter listed for Raman and fluorescence systems, with 45 degree incidence and high reflection and transmission.

SKU: P17 Category:
Guaranteed Safe Checkout

DICHROIC LONGPASS FILTER

P17 – FLU-TL800LM 785 nm Raman Dichroic Filter

785 nm dichroic filter listed for Raman and fluorescence systems, with 45 degree incidence and high reflection and transmission.

FLU-TL800LM 785 nm Raman Dichroic Filter on a white background

Specifications

  • 785 nm center wavelength
  • 45 degree incidence
  • 750-790 nm reflection
  • 805-890 nm transmission
  • R99% at 785 nm; T99%

Options

SKU Specification Price Availability
S70 25.2 x 35.6 x 1 mm; high transmission and high reflection; Raman application $459.38 In stock

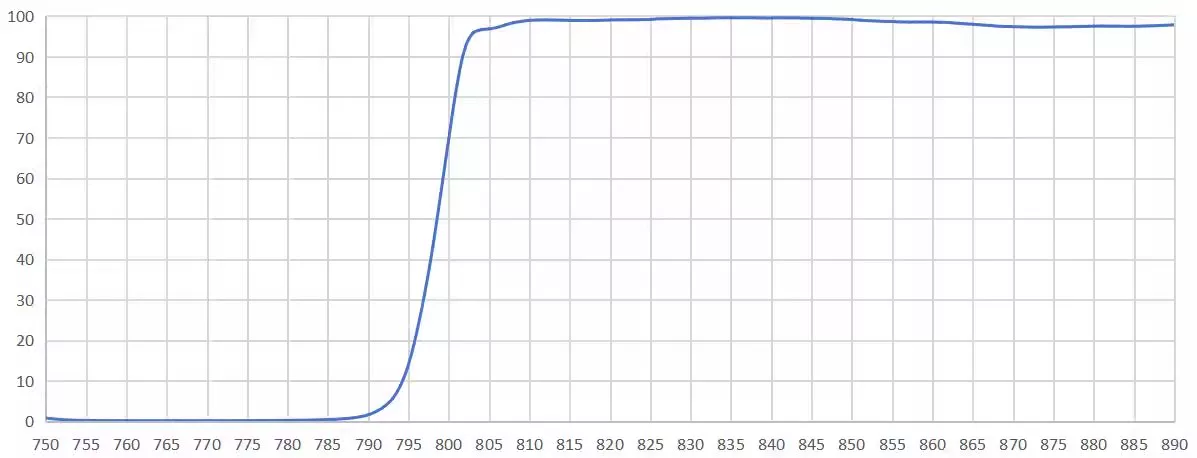

Transmission Spectrum

P17 FLU-TL800LM transmission spectrum at 45° incidence
FLU-TL800LM transmission spectrum at 45° incidence
Specification

S70 – 25.2 x 35.6 x 1 mm, high transmission and high reflection
