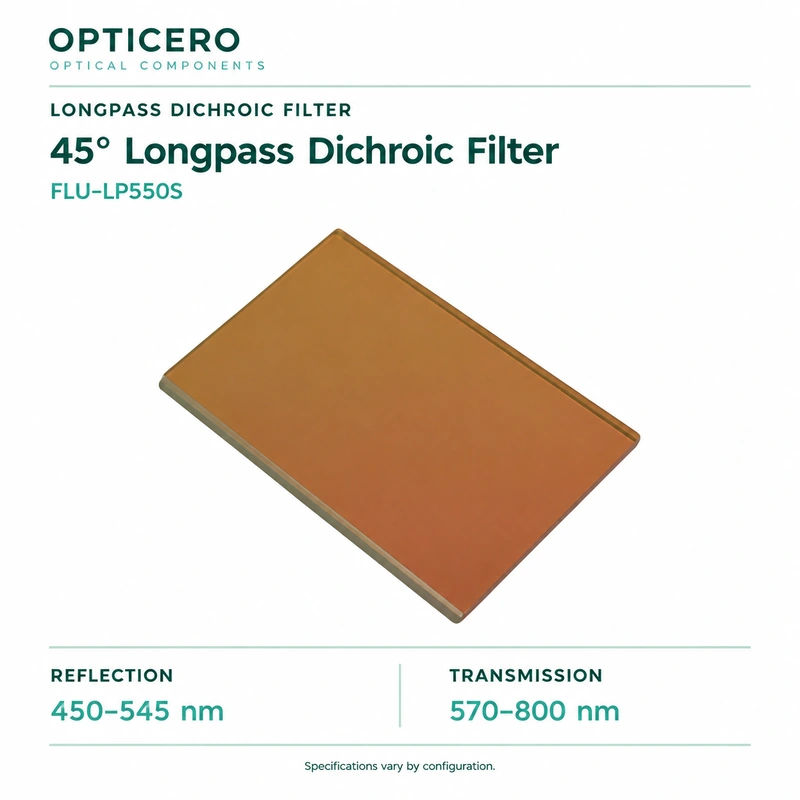

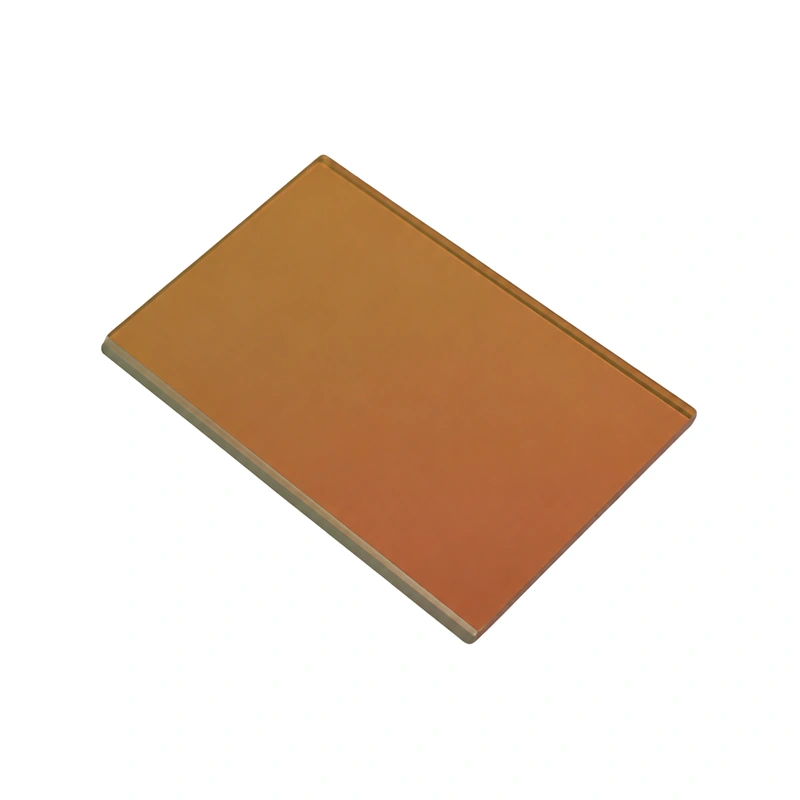

FLU-LP550S 45° longpass dichroic filter on a white background
FLU-LP550S 45° longpass dichroic filter, product photograph with verified English specifications
,

P02 – FLU-LP550S 45° Longpass Dichroic Filter

Price range: $70.31 through $178.13

& Free Shipping

FLU-LP550S is specified for 45 degree incidence, with a 450-545 nm reflection band and a 570-800 nm transmission band. Listed reflectance and transmittance are both above 95%, with double-sided coating and 532 nm reflection optimization.

SKU: P02 Categories: ,
Guaranteed Safe Checkout

FLU-LP550S is a longpass dichroic filter specified for 45 degree incidence. It reflects 450-545 nm and transmits 570-800 nm.

Specifications

  • Model: FLU-LP550S
  • Incidence angle: 45 degrees
  • Reflection band: 450-545 nm
  • Reflectance: >95%
  • Transmission band: 570-800 nm
  • Transmittance: >95%
  • Coating: Double-sided
  • 532 nm reflection optimization

Available configurations

  • S04 – D25 x 1 mm optic.
  • S05 – 25.2 x 35.6 x 1 mm optic.
  • S06 – 10.1 x 7.9 x 1 mm small rectangular optic.

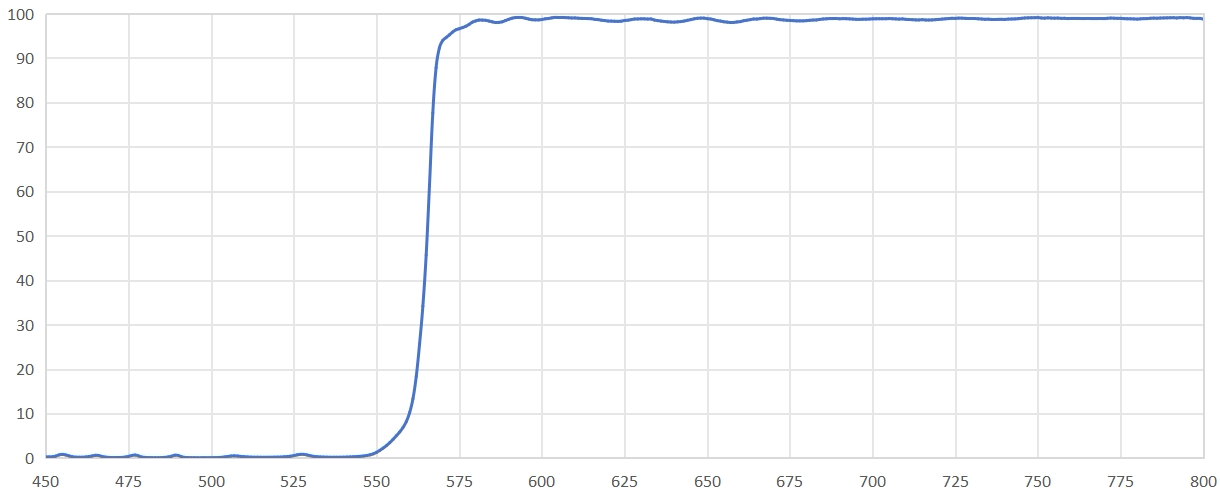

Transmission Spectrum

Full transmission spectrum of the FLU-LP550S dichroic longpass filter at 45 degree incidence.

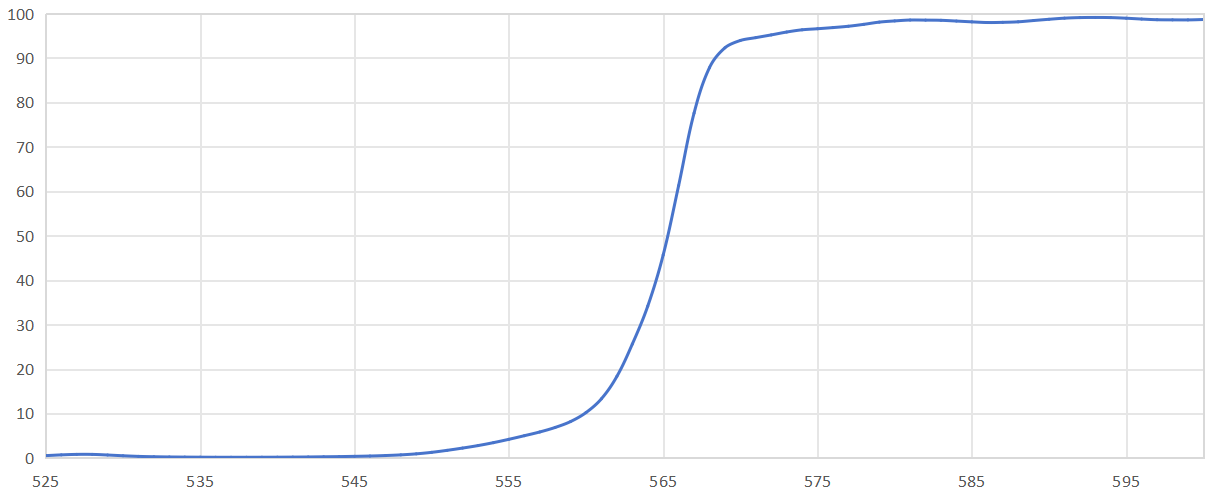

Transition Band Detail

Transition-band spectrum of the FLU-LP550S dichroic longpass filter at 45 degree incidence.

Configuration

S04 – D25 x 1 mm optic, S05 – 25.2 x 35.6 x 1 mm optic, S06 – 10.1 x 7.9 x 1 mm small rectangular optic
