PL 400-700 nm Linear Polarizer
PL linear polarizer for 400-700 nm with a 1000:1 extinction ratio, B270 substrate, and 2.3 mm optic thickness.

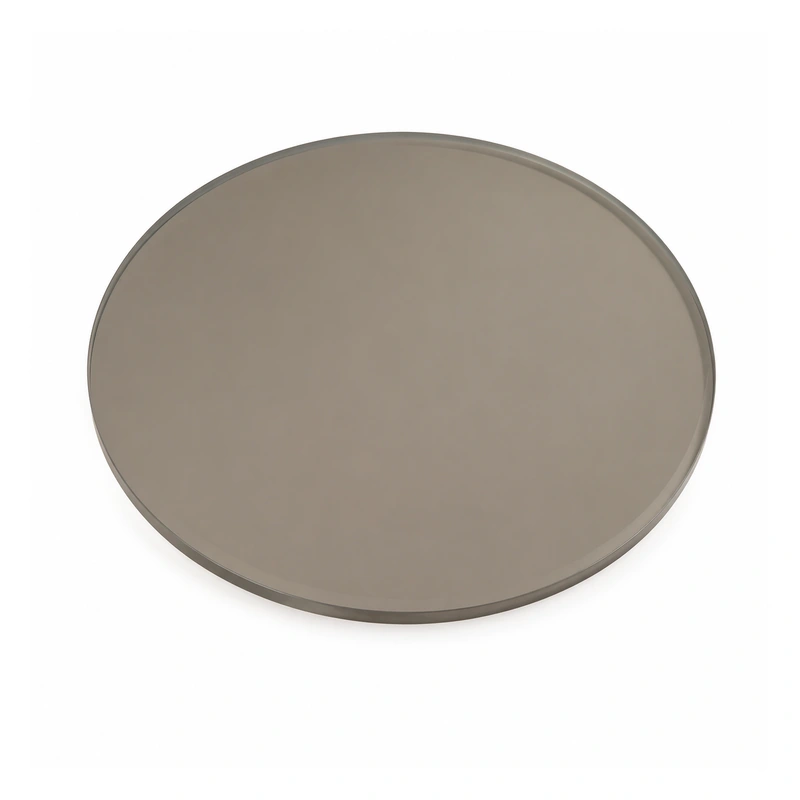

The photo shows an unmounted circular polarizer. The M30.5 and M62 options use mounts.
Specifications
| Model | PL |
|---|---|
| Wavelength range | 400-700 nm |
| Extinction ratio | 1000:1 |
| Transmission listed in source specifications | Greater than 40%; see the reference curve below |
| Substrate | B270 |
| Optic thickness | 2.3 mm |
Available Configurations
Select a configuration to see its price and SKU. Dimensions and mount style are specified for each option.
| SKU | Configuration | Price (USD) |
|---|---|---|
| S137 | D12.5 mm | $21.09 |
| S138 | D19 mm | $30.47 |
| S139 | D25.4 mm | $30.47 |
| S140 | D31 mm | $39.84 |
| S141 | D50 mm | $51.56 |
| S142 | M30.5 mount | $42.19 |
| S143 | M62 mount | $84.38 |

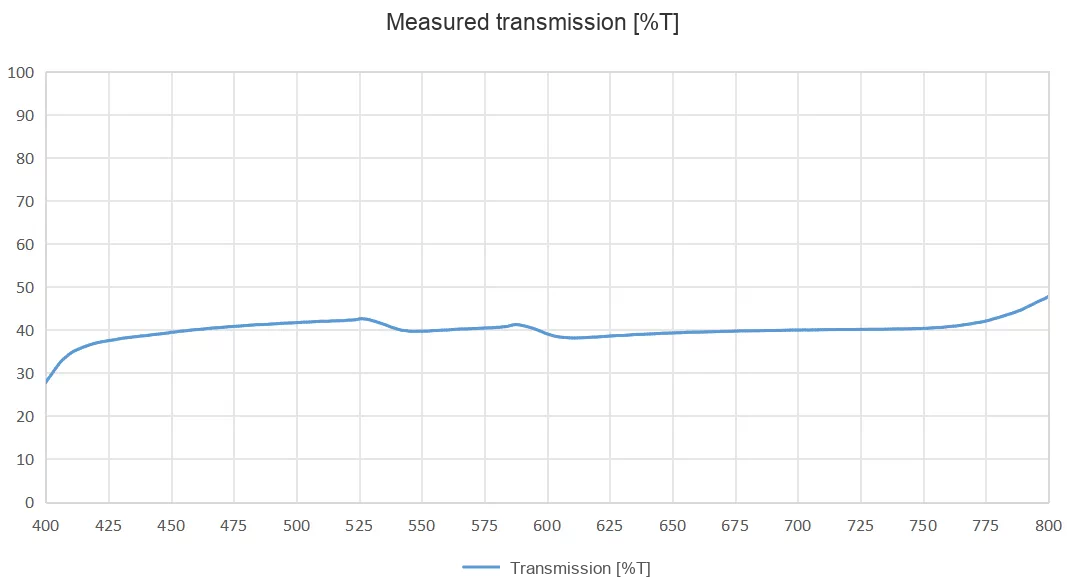

Transmission Spectrum
The horizontal axis shows wavelength in nm; the vertical axis shows transmission in percent.
The source specifications list transmission above 40%. The supplied reference curve varies with wavelength and includes values below 40%. The listed value must not be treated as a guaranteed minimum across the full band.
