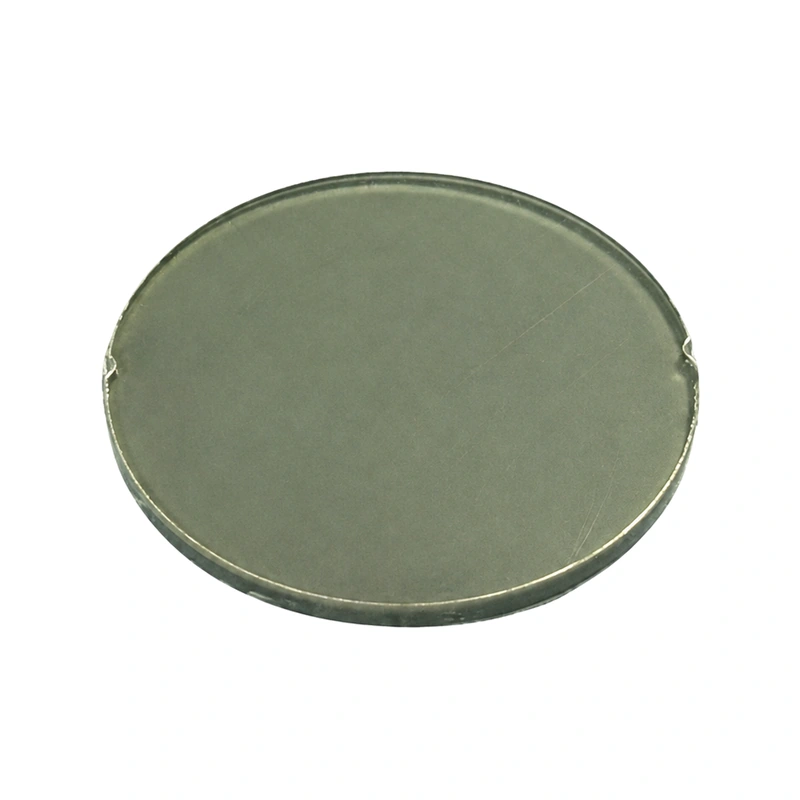

PL-G 400–700 nm linear polarizer on a white background

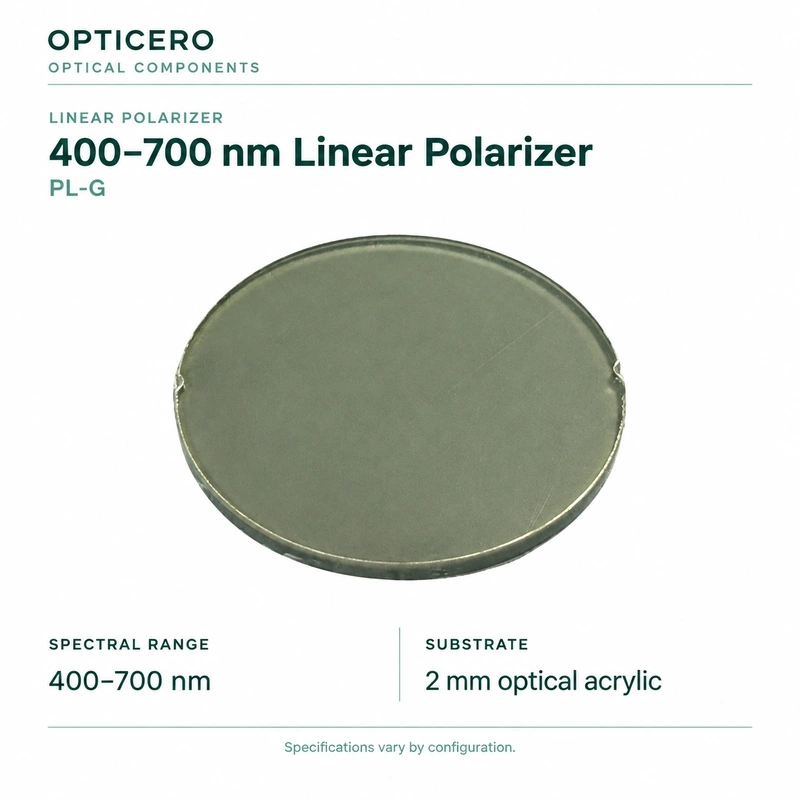

PL-G 400–700 nm linear polarizer, product photograph with verified English specifications
,

P04 – PL-G 400-700 nm Linear Polarizer

Price range: $162.42 through $317.11

& Free Shipping

PL-G visible linear polarizer for 400-700 nm, made with a 2 mm optical-grade acrylic substrate. The listed extinction ratio is approximately 10,000:1, with transmittance above 40%.

SKU: P04 Categories: ,
Guaranteed Safe Checkout

P04 · PL-G

400-700 nm Linear Polarizer

A visible-band linear polarizer with a 2 mm optical-grade acrylic substrate. The listing specifies an approximate extinction ratio of 10,000:1 and transmittance above 40%.

PL-G 400–700 nm linear polarizer on a white background

Specifications

Spectral range 400-700 nm
Substrate Optical-grade acrylic
Thickness 2 mm
Extinction ratio Approximately 10,000:1
Transmittance >40%
Maximum temperature 65 °C

Available configurations

  • S19 – Diameter 12.5 mm x 2 mm
  • S20 – Diameter 25.4 mm x 2 mm
  • S21 – Diameter 50.8 mm x 2 mm

Operating note

A protective film is applied at the factory and should be removed before use. The listing advises that this acrylic polarizer is not intended for experiments or systems with especially demanding imaging-quality requirements.

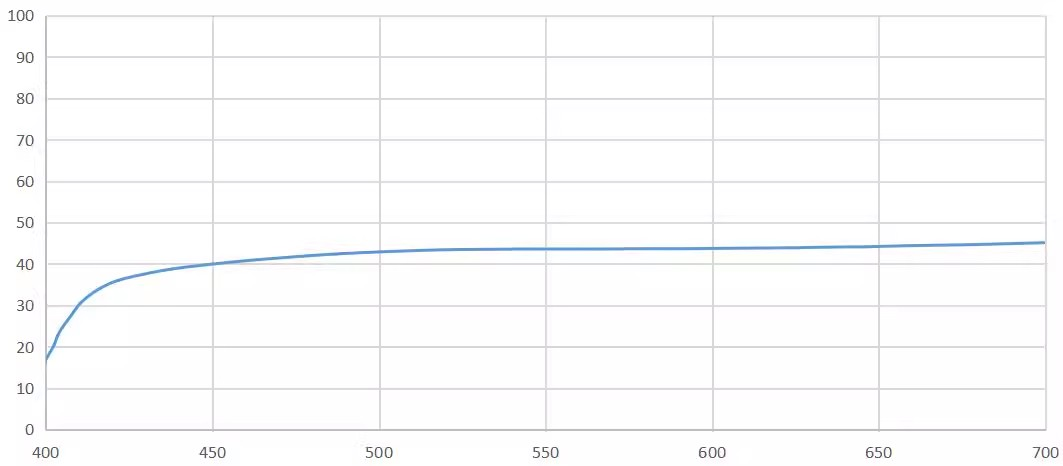

Transmittance Spectrum

Transmittance curve for the P04 PL-G 400-700 nm linear polarizer

Configuration

S19 – Diameter 12.5 mm x 2 mm, S20 – Diameter 25.4 mm x 2 mm, S21 – Diameter 50.8 mm x 2 mm
