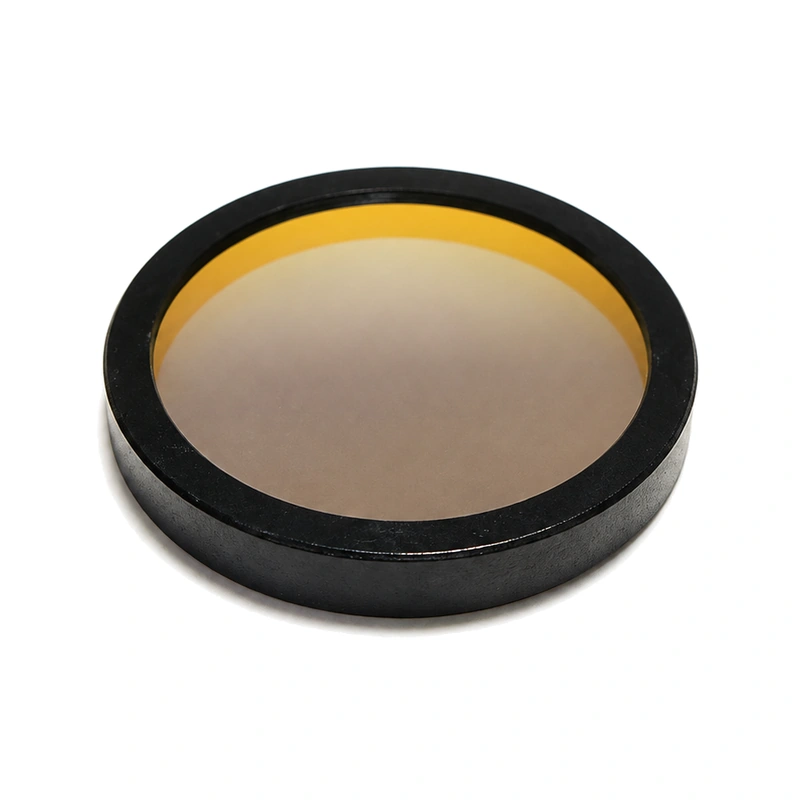

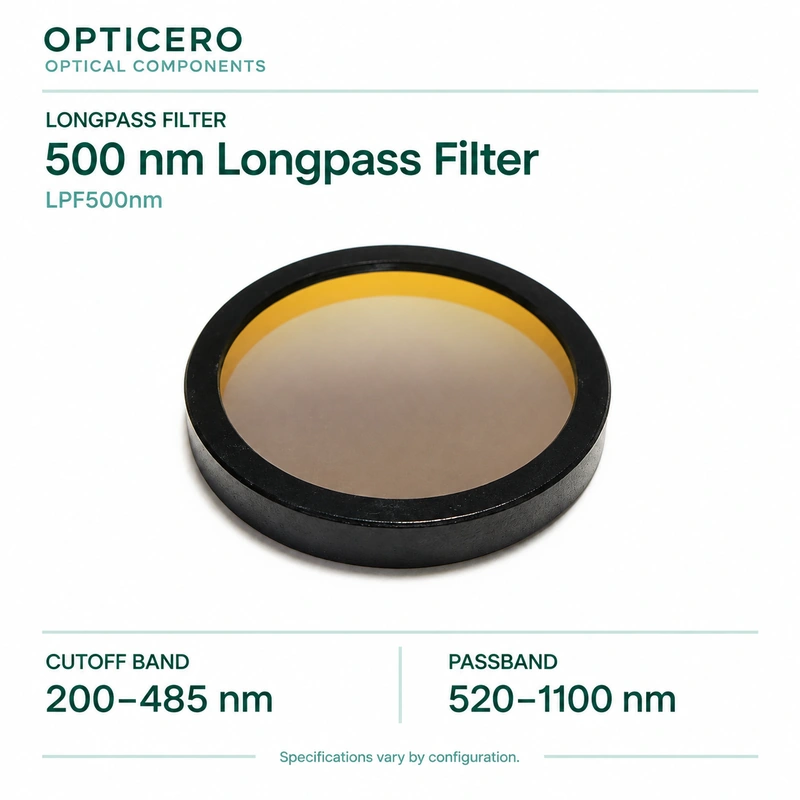

P01 – 500 nm Longpass Filter LPF500nm

LPF500nm is a 500 nm longpass filter with a 200-485 nm cut-off band and a 520-1100 nm passband. Select the format and blocking specification that matches your optical system.

Specifications

• Model: LPF500nm
• Cut-off band: 200-485 nm
• Passband: 520-1100 nm

Available configurations

• Ring-mounted round optic: D25 x 3.5 mm; T90%; OD5. SKU S01.
• Unmounted round optic: D50 x 0.55 mm; T90%; OD5. SKU S02.
• Unmounted rectangular optic: 54 x 21 x 2 mm; T90%; OD3. SKU S03.

Transmission Spectrum
