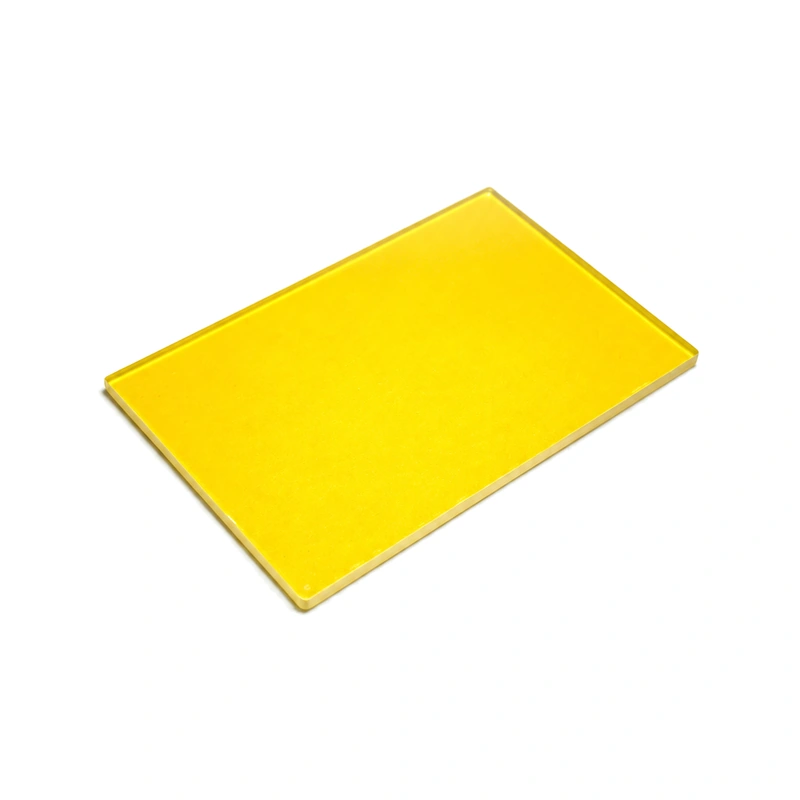

P05 · FLU-LP1000nm
Longpass Dichroic Filter
A 45-degree longpass dichroic filter for separating visible and near-infrared light. The listing specifies reflection from 400-985 nm and transmission from 1015-1700 nm.
Specifications
| Model | FLU-LP1000nm |
|---|---|
| Incidence angle | 45 degrees |
| Reflection band | 400-985 nm |
| Transmission band | 1015-1700 nm |
| Available sizes | 25.2 x 35.6 x 1 mm; diameter 25.4 x 1 mm |
Available configurations
- S22 – 25.2 x 35.6 x 1 mm
- S23 – Diameter 25.4 x 1 mm

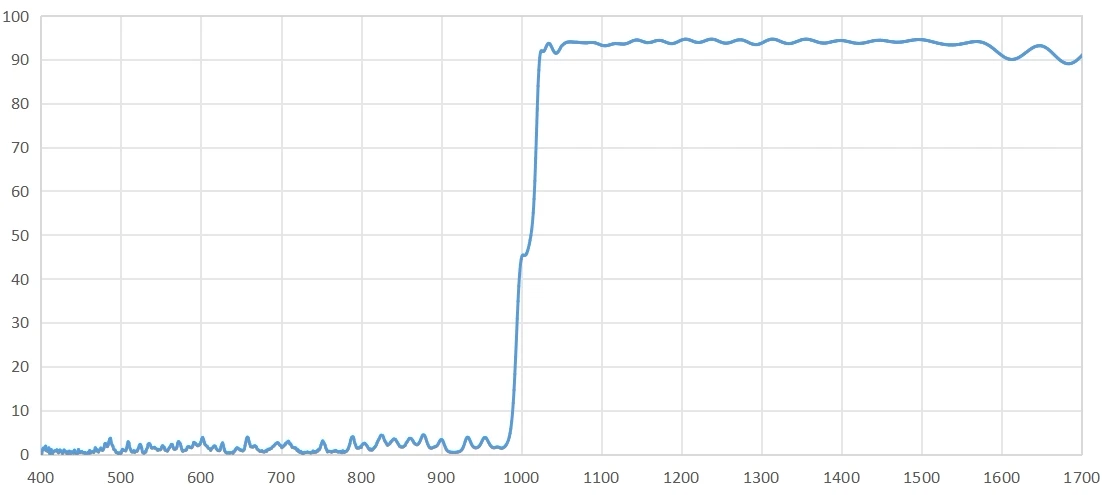

Transmission Spectrum
