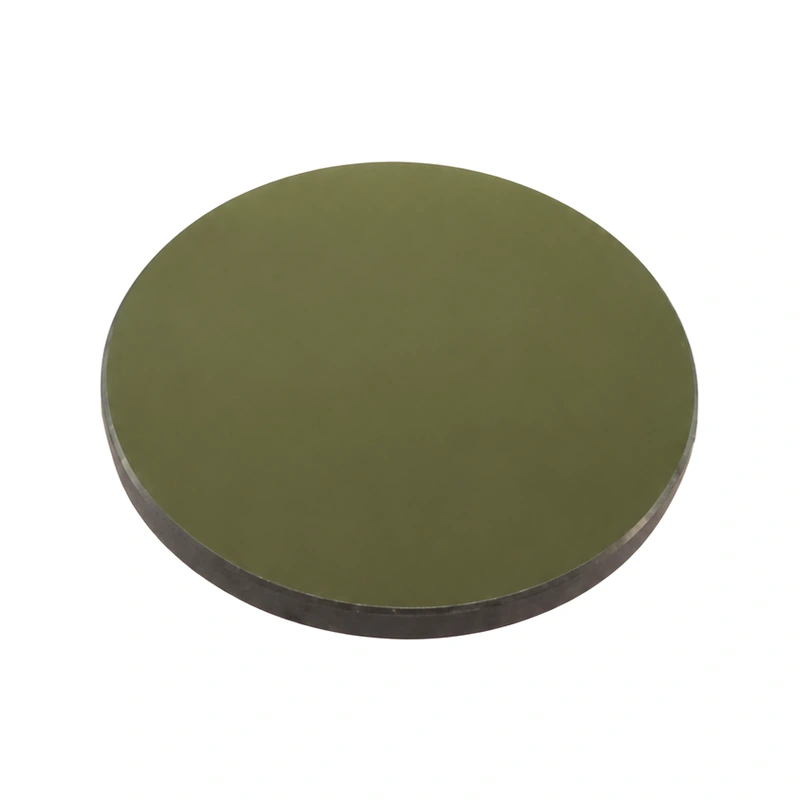

FNDUV-IR quartz neutral density filter, product photograph with verified English specifications

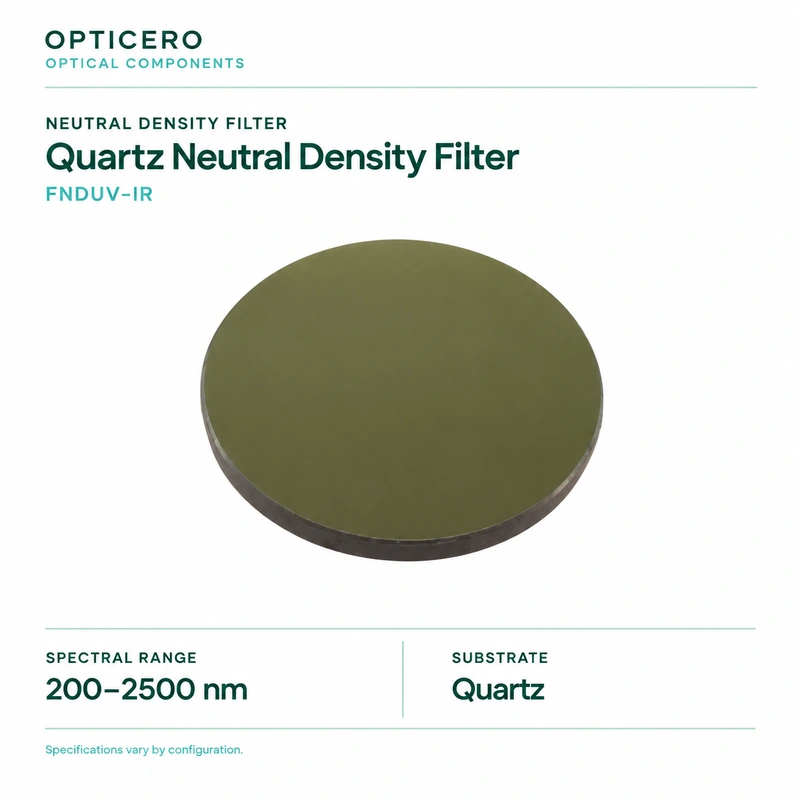

P03 – FNDUV-IR 200-2500 nm Quartz Neutral Density Filter

Price range: $270.23 through $701.48

& Free Shipping

FNDUV-IR quartz neutral density filter for a 200-2500 nm spectral range. Choose from 12 configurations with listed diameter, thickness and transmittance options.

Configuration

Clear

SKU: P03 Categories: Optical Filters, Neutral Density Filters

Guaranteed Safe Checkout

FNDUV-IR is a quartz neutral density filter listed for a 200-2500 nm spectral range.

Choose from 12 listed configurations. The D50 x 2 mm option has no transmittance value listed.

Specifications

Model	FNDUV-IR
Spectral range	200-2500 nm
Substrate	Quartz
Listed configurations	12

Available Configurations

SKU	Diameter	Thickness	Transmittance
S07	25 mm	2 mm	80%
S08	25.4 mm	2 mm	63%
S09	25 mm	2 mm	50%
S10	25 mm	2 mm	30%
S11	25.4 mm	2 mm	25%
S12	25.4 mm	1 mm	15%
S13	25 mm	2 mm	10%
S14	25 mm	2 mm	5%
S15	25 mm	2 mm	1%
S16	25 mm	2 mm	0.1%
S17	25 mm	2 mm	0.01%
S18	50 mm	2 mm	Not listed

Configuration	S07 – D25 x 2 mm, 80% transmittance, S08 – D25.4 x 2 mm, 63% transmittance, S09 – D25 x 2 mm, 50% transmittance, S10 – D25 x 2 mm, 30% transmittance, S11 – D25.4 x 2 mm, 25% transmittance, S12 – D25.4 x 1 mm, 15% transmittance, S13 – D25 x 2 mm, 10% transmittance, S14 – D25 x 2 mm, 5% transmittance, S15 – D25 x 2 mm, 1% transmittance, S16 – D25 x 2 mm, 0.1% transmittance, S17 – D25 x 2 mm, 0.01% transmittance, S18 – D50 x 2 mm

Configuration

S07 – D25 x 2 mm, 80% transmittance, S08 – D25.4 x 2 mm, 63% transmittance, S09 – D25 x 2 mm, 50% transmittance, S10 – D25 x 2 mm, 30% transmittance, S11 – D25.4 x 2 mm, 25% transmittance, S12 – D25.4 x 1 mm, 15% transmittance, S13 – D25 x 2 mm, 10% transmittance, S14 – D25 x 2 mm, 5% transmittance, S15 – D25 x 2 mm, 1% transmittance, S16 – D25 x 2 mm, 0.1% transmittance, S17 – D25 x 2 mm, 0.01% transmittance, S18 – D50 x 2 mm

Reviews

There are no reviews yet.

Be the first to review “P03 – FNDUV-IR 200-2500 nm Quartz Neutral Density Filter”

P03 – FNDUV-IR 200-2500 nm Quartz Neutral Density Filter

Specifications

Available Configurations

Reviews

Related products

P02 – FLU-LP550S 45° Longpass Dichroic Filter

P04 – PL-G 400-700 nm Linear Polarizer

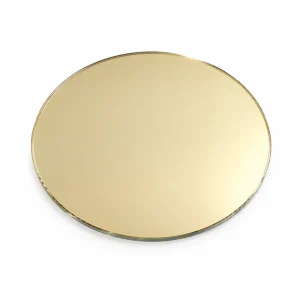

P30 – FND1 1% Neutral Density Filter
